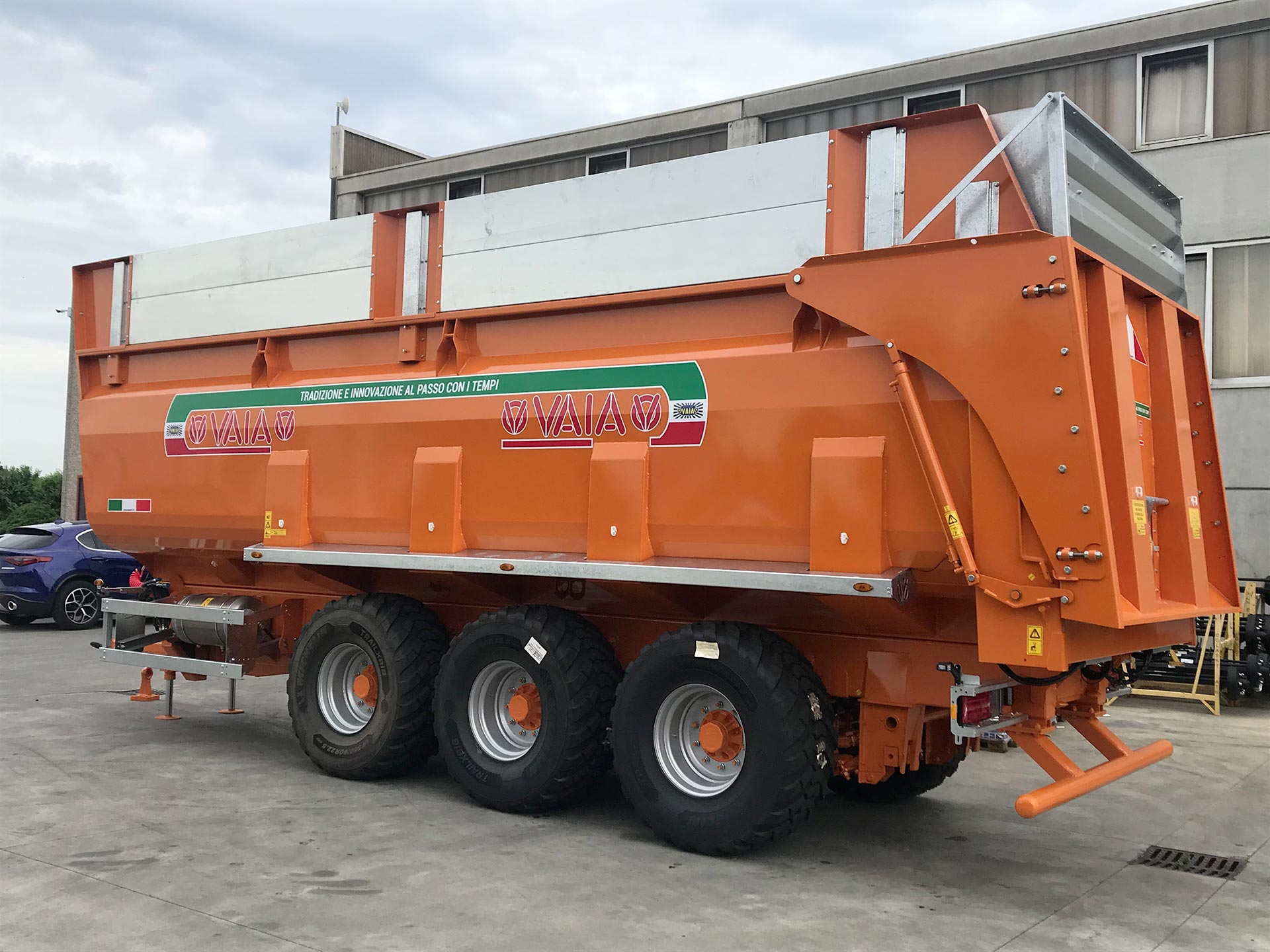

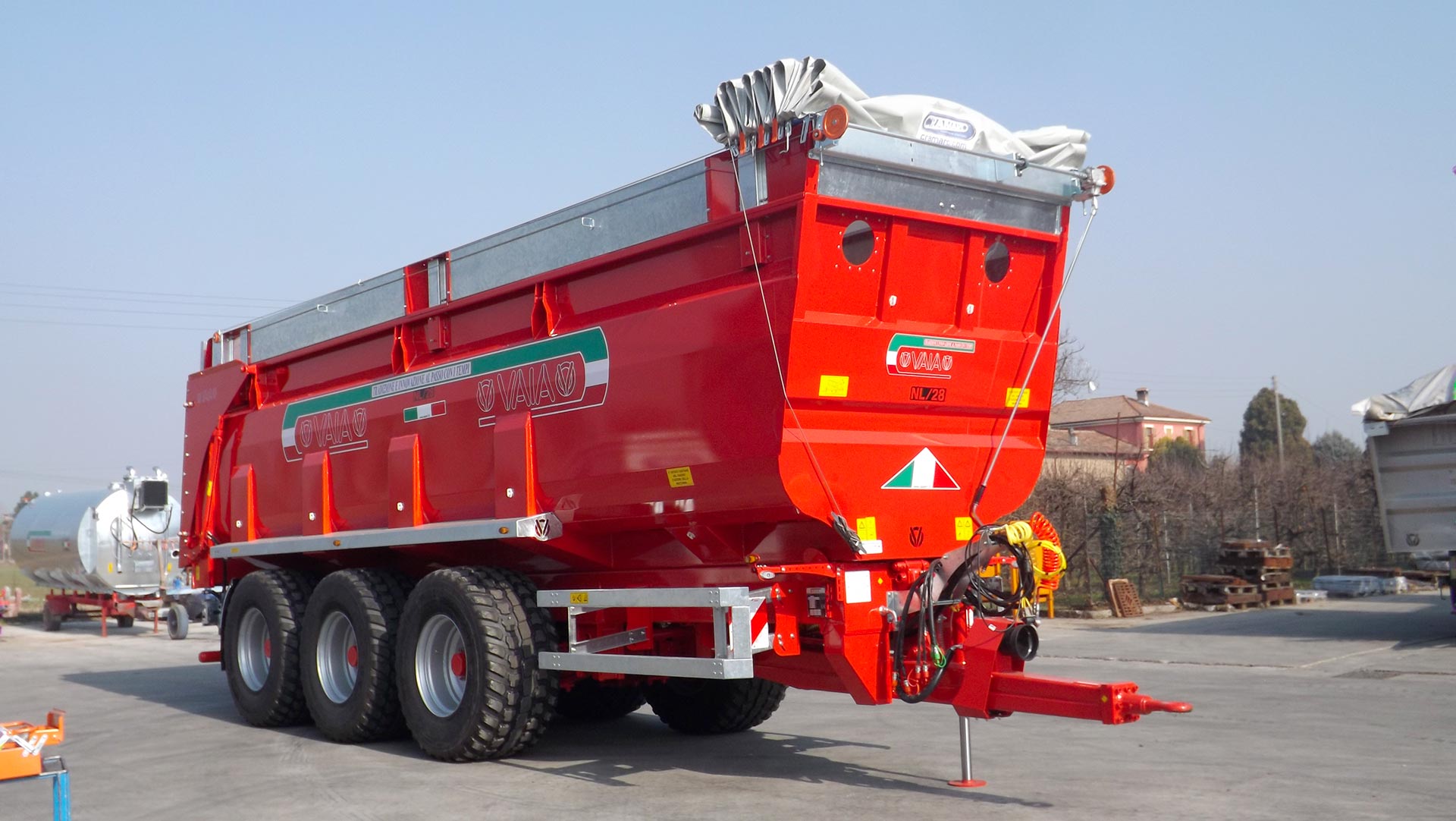

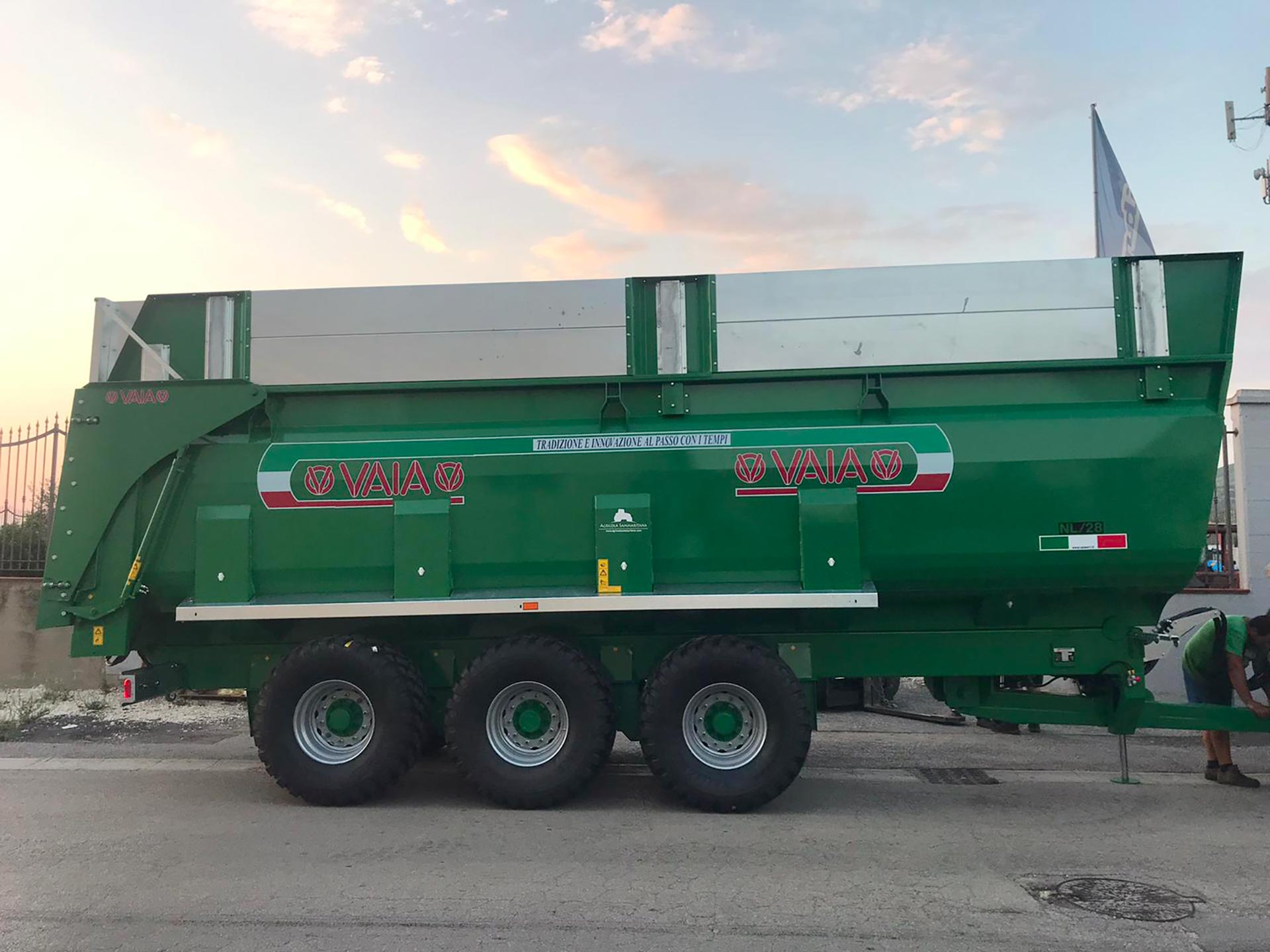

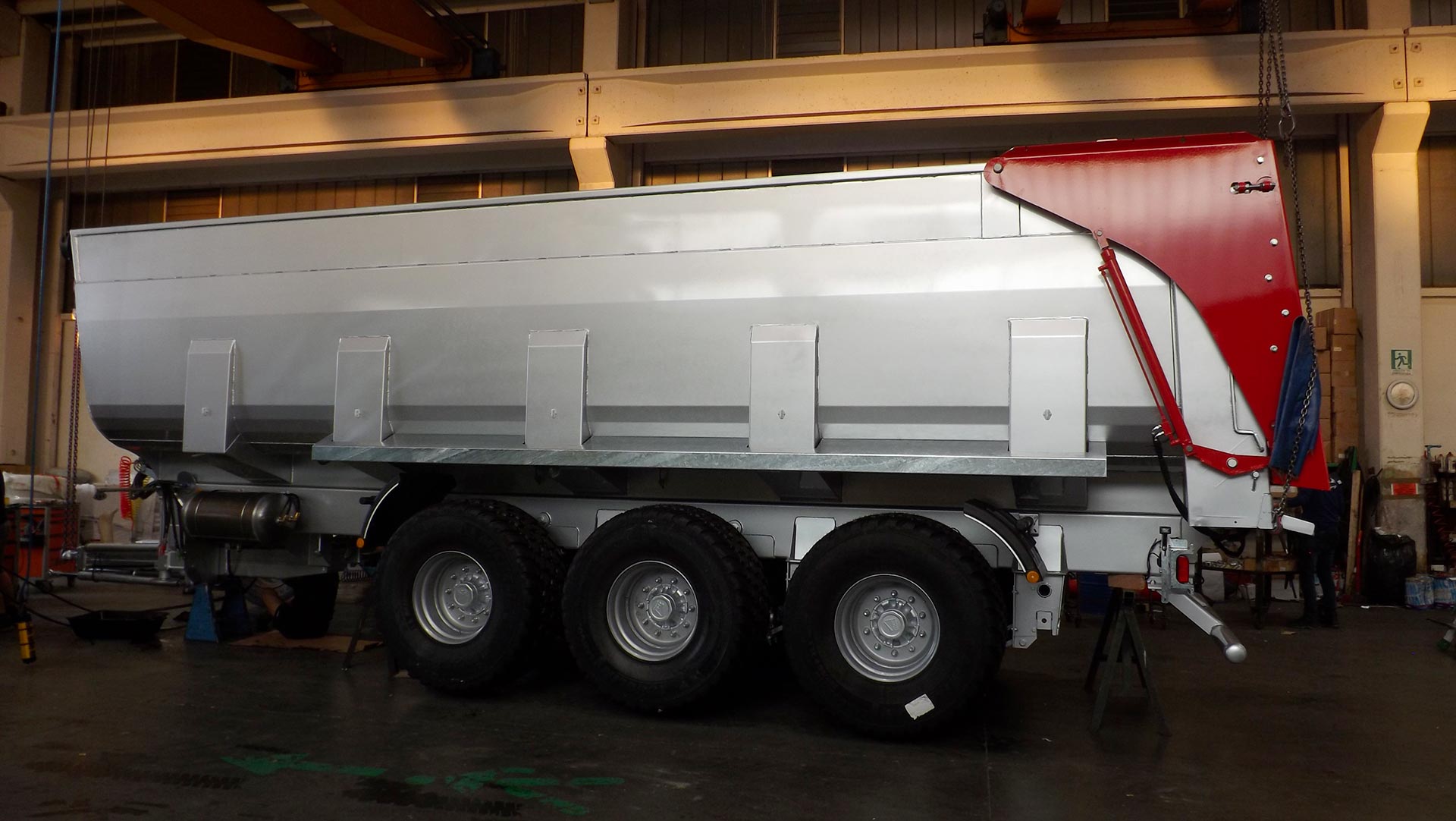

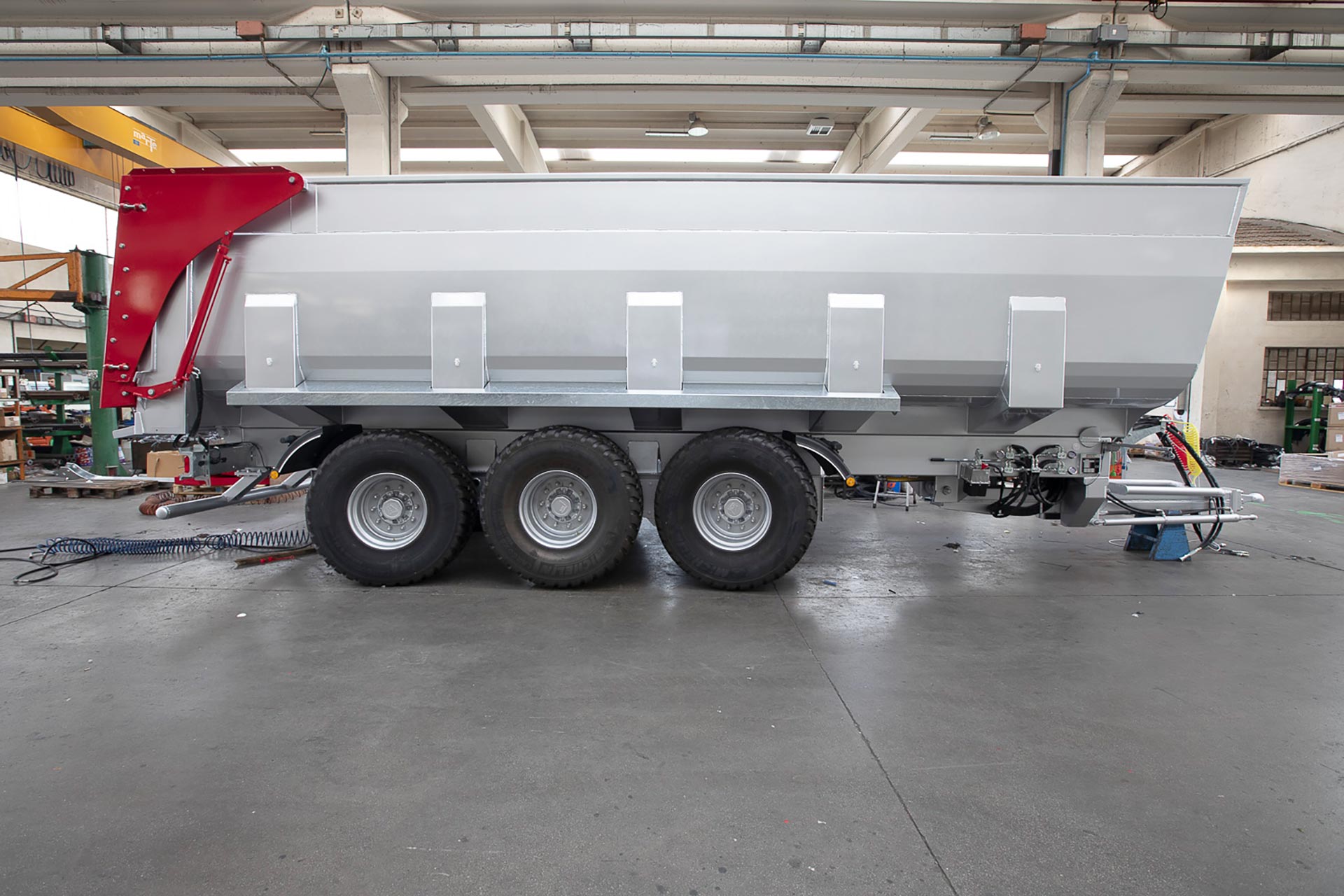

Dumper trailer
NL28 – NL28 M.R.
NL28 (Approval: 20 TON)
Capacity: 20,80 ÷ 45,20 m3
Tare: 9,5 ÷ 11,2 Ton
Caisson inner length: 8000 mm
Caisson inner width: 2260 mm
Caisson height: 1150 ÷ 1350÷ 1700 mm
Extension caisson: 400 ÷ 800 mm
Axles: n. 3 Q.130 ÷ Q.150
Brake type: Pneumatic ÷ Hydraulic
Payload: 22 TON
Type of approval: 20 TON
Wheels: 560/60R22.5 ÷ 445/65R22.5 600/55R26.5 ÷ 710/50R26.5 ÷ 24R20.5
NL28 M.R. (Approval: Europea 31 TON)
Capacity: 20,80 ÷ 45,20 m3
Tare: 9,5 ÷ 11,2 Ton
Caisson inner length: 8000 mm
Caisson inner width: 2260 mm
Caisson height: 1150 ÷ 1350÷ 1700 mm
Extension caisson: 400 ÷ 800 mm
Axles: n. 3 Q.130 ÷ Q.150
Brake type: Pneumatic
Payload: 24 TON
Type of approval: Europea 31 TON
Wheels: 560/60R22.5 ÷ 445/65R22.5 600/55R26.5 ÷ 710/50R26.5 ÷ 24R20.5
Accessories
AVAILABLE colors
RED RAL 3000
YELLOW VAIA
GREEN JOHN DEERE
GREEN FENDT
GREEN DEUTZ
GREEN CLASS
LIGHT BLUE LANDINI
BLUE NEW HOLLAND
BLACK OPACO ISO 90
BLACK LUCIDO
