Agricultural tank

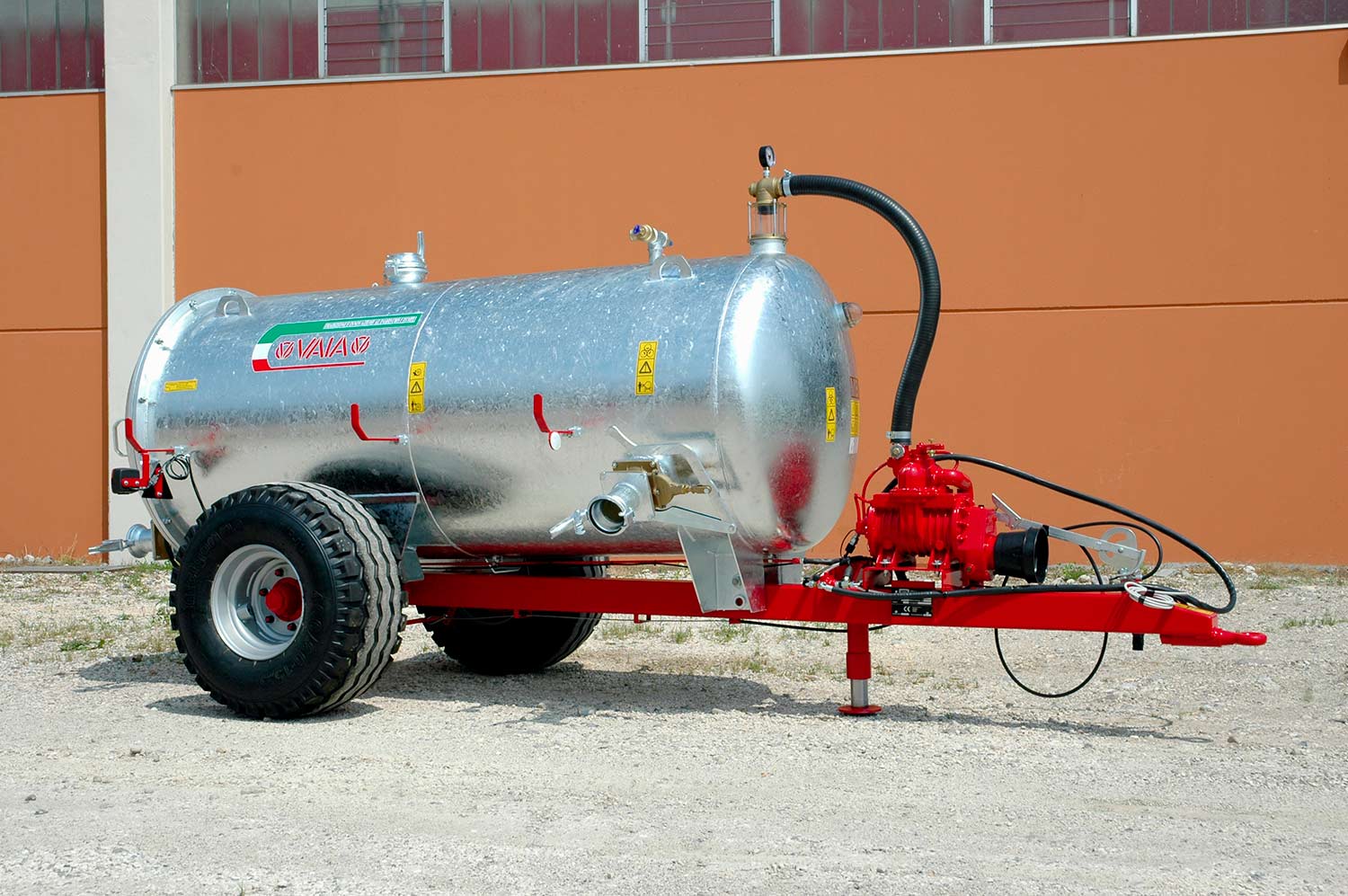

M01A – MB27EX – MB27 M.R.

M01A (Approval: Italian 3,6 TON)

Capacity: Lt. 2.700

Tare without wheels: 850 Kg

Maximum length without wheels: 4800 mm

Maximum width without wheels: 1900 mm with fender / 1750 mm without fender

Maximum height without wheels: 1700 mm

Diameter tank: 1100 mm

Axles: n. 1 Q.60

Brake type: Mechanic ÷ Hydraulic ÷ Pneumatic

Suction pump: MEC4000 ÷ 5000

Type of approval: Italian 3,6 TON

Wheels: 11.5/80-15.3 ÷ 400/60-15.5

MB27EX (Approval: Foreign 3,6 TON without approval only CE certification)

Capacity: Lt. 2.700

Tare without wheels: 850 Kg

Maximum length without wheels: 4800 mm

Maximum width without wheels: 1900 mm with fender / 1750 mm without fender

Maximum height without wheels: 1700 mm

Diameter tank: 1100 mm

Axles: n. 1 Q.60

Brake type: Mechanic ÷ Hydraulic ÷ Pneumatic

Suction pump: MEC4000 ÷ 5000

Type of approval: Foreign 3,6 TON without approval only CE certification

Wheels: 11.5/80-15.3 ÷ 400/60-15.5 ÷ 19.045-17

MB27 M.R. (Approval: European 4,5 TON)

Capacity: Lt. 2.700

Tare without wheels: 850 Kg

Maximum length without wheels: 4800 mm

Maximum width without wheels: 1900 mm with fender / 1750 mm without fender

Maximum height without wheels: 1700 mm

Diameter tank: 1100 mm

Axles: n. 1 Q.60

Brake type: Pneumatic

Suction pump: MEC4000 ÷ 5000

Type of approval: European 4,5 TON

Wheels: 11.5/80-15.3 ÷ 400/60-15.5 ÷ 19.045-17

Accessories


AVAILABLE colors


RED RAL 3000

YELLOW VAIA

GREEN JOHN DEERE

GREEN FENDT

GREEN DEUTZ

GREEN CLASS

LIGHT BLUE LANDINI

BLUE NEW HOLLAND

BLACK OPACO ISO 90

BLACK LUCIDO
